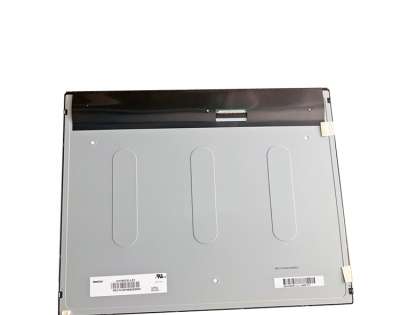

1.Innolux G170ECE-LE1 Application Details
Basic Information : | Brand | INNOLUX | Model | G170ECE-LE1 |
Type | a-Si TFT-LCD , LCM | Used For | Industrial |
Screen Size | 17.0 inch |
|
|
Environment : | Storage Temp. | -20 ~60 °C | Operating Temp. | 0 ~ 60 °C |
RoHS | RoHS | Vibration Rating | 1.5G (14.7 m/s²) |
Typical Features : | WLED Backlight，Life≥50K hours,Matte |
2.Innolux G170ECE-LE1 Mechanical Details
Pixel Features : | Resolution | 1280(RGB)×1024, SXGA | Dot Pitch | 0.088×0.264 mm (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch | 0.264×0.264 mm (H×V) [96PPI] |
Mechanical Size : | Active Area | 337.92×270.336 mm (H×V) | Outline Dim. | 341.9×274.4 mm (H×V) |
Outline Dim. | 358.5×296.5 mm (H×V) | Depth(mm) | 8/12.7 (Typ./Max.) mm |
Outline Features : | Form Style | Flat Rectangle | Shape Style |
|
Aspect Ratio | 5:4 (H:V) | Orientation | Landscape type |
Fixation : | Side mounting holes (4-M3) on left, right bezel |
Other Spec : | Weight | 1.29/1.35Kgs (Typ./Max.) | Treatment | Antiglare, Hard coating (3H) |
3.Innolux G170ECE-LE1 Optical Details
Basic Information : | Luminance | 250cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | 14/11(Typ.)(Tr/Td) |
Color Performance : | White Coordinate | Wx:0.313; Wy:0.329 | Display Colors | 16.7M (8-bit) |
Color Temperature | 6485K | Uniformity | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 74% | sRGB Coverage | 95% |
Adobe RGB Coverage | 73% | DCI-P3 Coverage | 77% |
Rec.2020 Coverage | 55% | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
4.Innolux G170ECE-LE1 Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 7.2W (Max.) |
5.Innolux G170ECE-LE1 Interface Detail
Signal Electrical : | Voltage Supply | 5.0V (Typ.) | Current Supply | 320/380mA (Typ./Max.) |
Signal Type : | LVDS (2 ch, 8-bit) | Consumption | 1.7W (Typ.) |
Interface Features : | Position | - |
| Type | Connector |
Interface Detail : | Brand | Model | Pitch | Pins | Quantity | Pin Configuration |
CviLux | CI1406M1VL0-NH | 1.0mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC |
6.Innolux G170ECE-LE1 Backlight Details
Backlight Features : | Lamp Shape | - | Lamp Type | WLED | Life Time | 50K(Min.) (Hours) |
Replacement | - | Amount | - | Position | Edge light type |
Lamp Electrical : | Voltage Supply | 42.5/47.3/56V (Min./Typ./Max.) | Current Supply | 29±2.9mA |
Consumption | 5.0/5.5/7.1W (Min./Typ./Max.) |
Interface Features : | Position | Down left corner | Physical Type | Connector |
Backlight Driver : | No |
Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Configuration |
CviLux | CI1406M1VL0-NH | 1.0 mm | 6 pins | 1 pcs | BLE-6PINS-CCAACC |
7.Innolux G170ECE-LE1 Packing Features
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) | Remarks |
Carton | 11 | 1 | 475×390×410 | 16.25 | 0.0760 |
|
