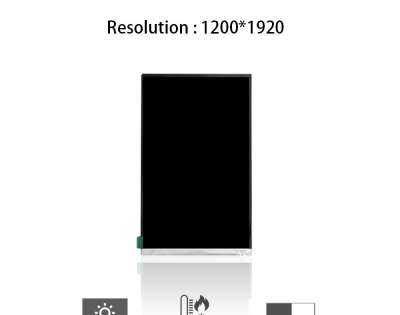

1.Innolux GK070VA-01B Application Details
Basic Information : | Brand | INNOLUX | Model | GK070VA-01B |
Type | LCM LTPS TFT-LCD | Used For | Industrial，Outdoor High Brightness |
Screen Size | 7.0" |
|
|
Environment : | Storage Temp. | -20 ~~ 70 °C | Operating Temp. | -20 ~~ 70 °C |
RoHS | RoHS |
|
|
Typical Features : | Wide Color Gamut，Portrait type，Ultra High Brightness，Mini LED Backlight |
2.Innolux GK070VA-01B Mechanical Details
Pixel Features : | Resolution | 1200(RGB)×1920, WUXGA | Dot Pitch(mm) | 0.02625×0.07878 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.07878×0.07878 (H×V) [322PPI] |
Mechanical Size : | Active Area(mm) | 94.5(H) × 151.2(V) | Bezel Area(mm) | - |
Outline Features : | Form Style | Flat Rectangle | Outline Shape |
|
Aspect Ratio | 10:16 (H:V) | Orientation | Portrait type |
3.Innolux GK070VA-01B Optical Details
Basic Information : | Luminance(cd/m²) | 2000 (Typ.) | Contrast Ratio | 40000:1 (Min.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | - |
Color Performance : | White Coordinate | - | Display Colors | 16.7M (8-bit) |
Color Temperature | - | White Uniformity | 16.7M (8-bit) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4.Innolux GK070VA-01B Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
5.Innolux GK070VA-01B Interface Details
Signal Electrical : | Voltage Supply | - | Current Supply | - |
Signal Type : | MIPI (4 data lanes) |
| Signal Voltage | - |
Interface Features : | Position | - |
| Type | Connector |
6.Innolux GK070VA-01B Backlight Details
Backlight Features: | Shape | - | Type | Mini LED | Position | Direct light type |
Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) |
Interface Features : | Position | - |
| Type | Included in signal interface |
Backlight Driver : | No |
