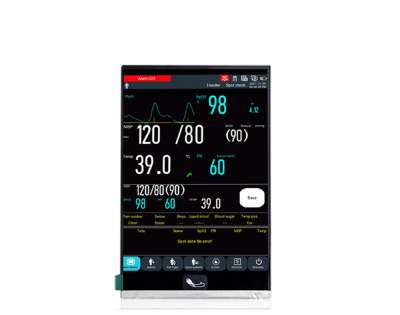

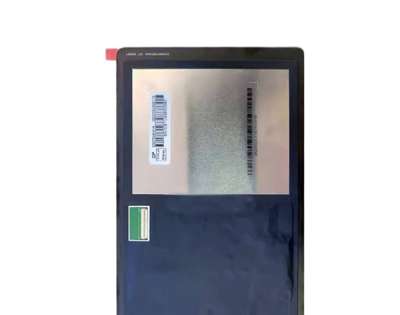

1.Innolux ZD070VA-01A Application Details
Basic Information : | Brand | INNOLUX | Model | ZD070VA-01A |
Type | LCM LTPS TFT-LCD | Used For | Industrial |
Screen Size | 7.0" |
|
|
Environment : | Storage Temp. | -20 ~~ 60 °C | Operating Temp. | -20 ~~ 50 °C |
RoHS | RoHS |
|
|
Typical Features : | Wide Color Gamut，Portrait type，With Touch，Ultra High Brightness，Mini LED Backlight |
2.Innolux ZD070VA-01A Mechanical Details
Pixel Features : | Resolution | 1200(RGB)×1920, WUXGA | Dot Pitch(mm) | 0.02625×0.07878 (H×V) |
Pixel Format | RGB Vertical Stripe | Pixel Pitch(mm) | 0.07878×0.07878 (H×V) [322PPI] |
Mechanical Size : | Active Area(mm) | 94.5(H) × 151.2(V) | Bezel Area(mm) | - |
Outline Dim.(mm) | 107.5(H) × 174.2(V) | Depth(mm) | 5.63 (Max.) |
Outline Features : | Form Style | Flat Rectangle | Outline Shape |
|
Aspect Ratio | 10:16 (H:V) | Orientation | Portrait type |
Touch Panel : | Touch Points | 10 points | Touch Panel | In-Cell Touch |
TP Controller | With controller | Touch Signal | I²C |
Other Spec : | Weight | 124g (Max.) | Treatment | Anti Fingerprint, Hard coating (7H) |
Panel Cover | With Cover Lens |
3.Innolux ZD070VA-01A Optical Details
Basic Information : | Luminance(cd/m²) | 2000 (Typ.) | Contrast Ratio | 40000:1 (Min.) (Transmissive) |
Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Display Mode | AAS, Normally Black, Transmissive |
Best View on | Symmetry | Response(ms) | TBD |
Color Performance : | White Coordinate | - | Display Colors | 16.7M (8-bit) |
Color Temperature | - | White Uniformity | 1.25/1.67 (Max.)(5/13 points) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4.Innolux ZD070VA-01A Electronics Details
Frame Rate : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 8.4W (Typ.) |
5.Innolux ZD070VA-01A Interface Details
Signal Electrical : | Voltage Supply | 6.0/6.6/6.85V (Min./Typ./Max.) | Current Supply | - |
Signal Type : | MIPI (4 data lanes) |
| Signal Voltage | - |
Interface Features : | Position | - |
| Type | Connector |
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
I-PEX | 20982-051E-01 | 1 pcs | 51 pins | 0.3 mm |
|
6.Innolux ZD070VA-01A Backlight Details
Backlight Features: | Shape | - | Type | Mini LED | Position | Direct light type |
Replacement | - | Quantity | - | Life Time | 15K(Min.) (Hours) |
Lamp Electrical : | Voltage Supply | 6.0/6.6/6.85V (Min./Typ./Max.) | Current Supply |
|
Consumption | 5.4/5.6W (Typ./Max.) |
Interface Features : | Position | - |
| Type | Included in signal interface |
Backlight Driver : | No |
7.Innolux ZD070VA-01A Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 56 | 1 | 530×367×260 | N/A | 0.0506 |
