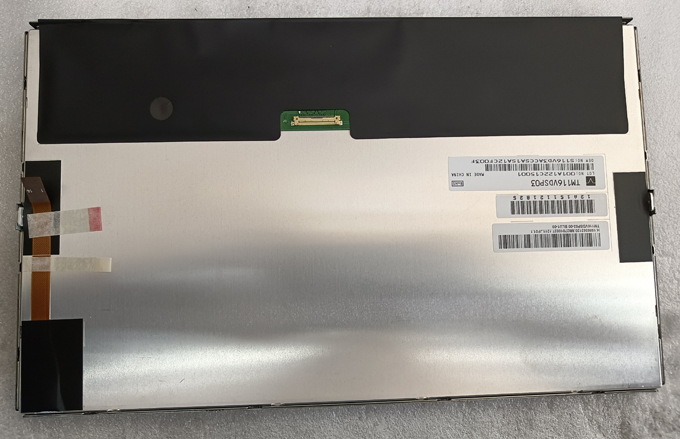

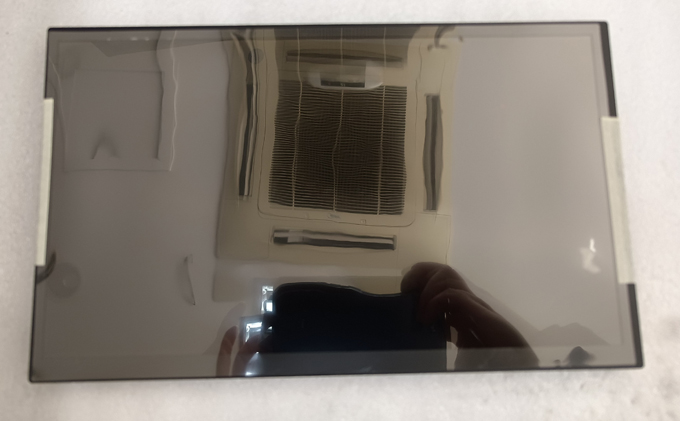

TM116VDSP03

Your location:Home > Products > Car LCD Screen >
  • TM116VDSP03
  • TM116VDSP03
  • Model:TM116VDSP03
  • Brand:TIANMA
  • Size:11.6英寸
  • Resolution:1920×1080
  • Brightness:1000 cd/m² (Typ.)
  • Perspective:88/88/88/88 (Typ.)
  • Interface:LVDS
  • Operating temperature:-20 ~ 70 °C
  • Current production status: In mass production
  • Technical Parameters
  • TIANMA TM116VDSP03 Application Details
    Basic Information : Brand Tianma Model TM116VDSP03
    Type a-Si TFT-LCD , LCM Used For Industrial,Outdoor High Brightness
    Screen Size 11.6 inch
    Environment : Storage Temp. -30 ~ 85 °C Operating Temp. -20 ~ 70 °C
    RoHS RoHS
    Typical Features : Ultra High Brightness,WLED Backlight,Life>=50K hours

    TIANMA TM116VDSP03 Mechanical Details
    Pixel Features : Resolution 1920(RGB)×1080, FHD Dot Pitch(mm) 0.0445×0.1335 (H×V)
    Pixel Format RGB Vertical Stripe Pixel Pitch(mm) 0.1335×0.1335 (H×V)  [190PPI]
    Mechanical Size : Active Area(mm) 256.32(H) × 144.18(V) Bezel Area(mm) 259.31(H) × 148.73(V)
    Outline Dim.(mm) 273.5(H) × 166.5(V) Depth(mm) 7.8/11.5 (Typ./Max.)
    Outline Features : Form Style Flat Rectangle Shape Style
    Aspect Ratio 16:9 (H:V) Orientation Landscape type
    Other Spec : Weight TBD Treatment Hard coating

    TIANMA TM116VDSP03 Optical Details
    Basic Information  Luminance(cd/m²) 1000 (Typ.) Contrast Ratio 900:1 (Typ.) (Transmissive)
    Viewing Angle 88/88/88/88 (Typ.)(CR≥10) Display Mode SFT, Normally Black, Transmissive
    Best View on Symmetry Response(ms) 25 (Typ.)(Tr+Td)
    Color Performance : White Coordinate - Display Colors 16.7M (8-bit)
    Color Temperature - White Uniformity

    1.25/1.43 (Typ./Max.)(9 points)
    Dispaly Performance : Outdoor Visibility Sunlight Readable Transmissivity -

    TIANMA TM116VDSP03 Electronics Details
    Frame Rate : 60Hz
    Reverse Scan : No
    Driver IC : COG Built-in NT51625*3+NT52601*2

    TIANMA TM116VDSP03 Interface Detail
    Signal Electrical :


    Voltage Supply
    3
    3.3V (Typ.)   Current Supply TBD
    Signal Type :

    LVDS (2 ch, 8-bit)     Logic Voltage -
    Interface Features : Position     Type Connector
    Interface Detail : Brand Model Pitch Pins Quantity Pin Configuration
    I-PEX 20455-030E-76 0.5 mm 30 pins 1 pcs

    TIANMA TM116VDSP03 Backlight Details
    Backlight Features: Type Position Shape Amount Life(Hours) Replacement
    WLED Edge light type 6 strings 9S6P 50K(Typ.)
    WLED Electrical : Current Input Voltage Input Consumption
    60mA (Typ.) 26.1V (Typ.)
    Interface Features : Position Type WLED Driver
      Connector No
    Interface Detail Brand


    Model Amount Pin Pitch Pins Pin Assignment
    Kyocera Elco
    04-6299-614-020-846+

    1 pcs 0.5 mm 14 pins BLE-14PIINS-AAAANNNNCCCCCC

    TIANMA TM116VDSP03 Packing Features
    Package Carton : Amount Weight Carton Size
    14 pcs / box - 530×340×274 mm (L×W×H)
