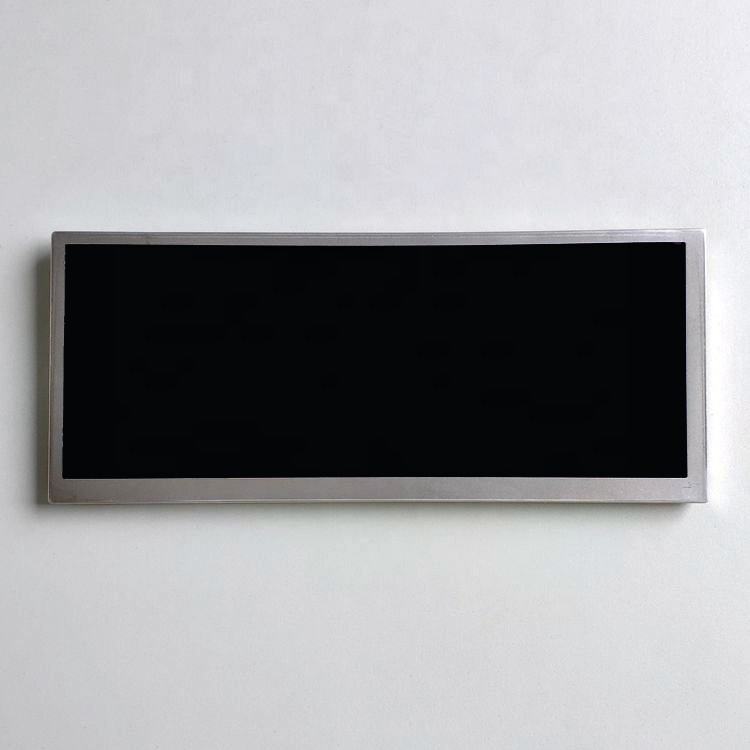

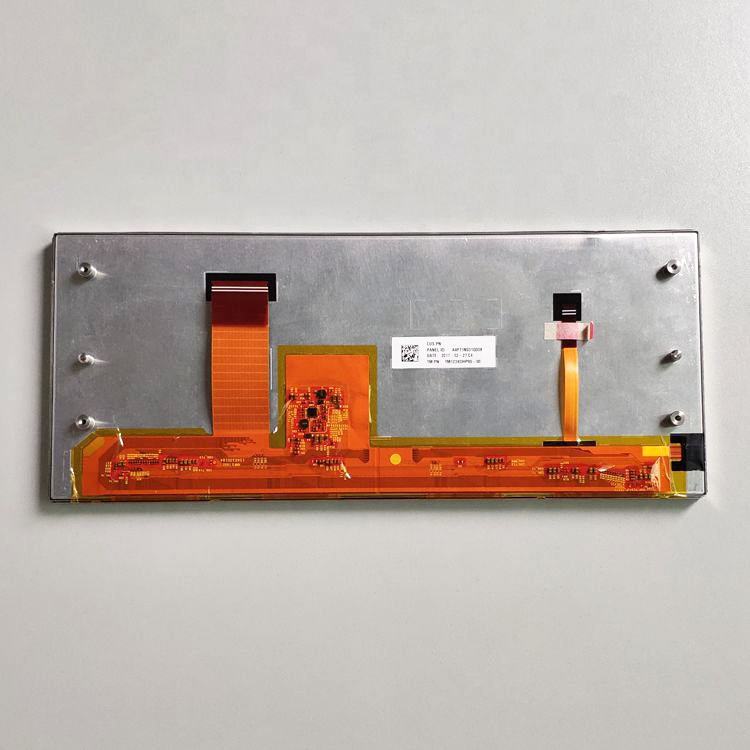

  • 1920x720 TIANMA 50 pin 12.3 inch TFT LCD Display TM123XDHP90
  • 1920x720 TIANMA 50 pin 12.3 inch TFT LCD Display TM123XDHP90
  • Model:TM123XDHP90
  • Brand:TIANMA
  • Size:12.3inch
  • Resolution:1920×720
  • Brightness:1000 cd/m² (Typ.)
  • Perspective:89/89/89/89 (Typ.)
  • Interface:LVDS
  • Operating Temp.:-40 ~ 85 °C
  • Production State: In mass production
  • Get a Quote
  • Technical Parameters
  • One、TIANMA TM123XDHP90 Application Details
    Basic Info : Panel Brand TIANMA Panel Model TM123XDHP90
    Diagonal Size 12.3" Application Industrial,Outdoor High Brightness,Automotive Display
    Panel Type a-Si TFT-LCD , LCM
    Reliability : Operating Temp. -40 ~ 85 °C Storage Temp. -40 ~ 95 °C
    RoHS  State RoHS Vibration Rating 3.0G (29.4 m/s²)
    Specific Features :


    Srgb,Wide Temperature,Ultra High Brightness,WLED Backlight,Bar Display,U/D,L/R Reverse,Matte

    Two、TIANMA TM123XDHP90 Mechanical Details

    Pixel Features : Pixel Format 1920(RGB)×720 Dot Pitch 0.05075×0.15225 mm (H×V)
    Configuration RGB Vertical Stripe Pixel Pitch 0.15225×0.15225 mm (H×V)  [166PPI]
    Mechanical Size : Display Area 292.32×109.62 mm (H×V) Outline Dim. -
    Outline Dim. 311×130 mm (H×V) Outline Depth 8.5/15.7 (Typ./Max.) mm
    Outline Features : Form Factor Flat Rectangle Orientation Landscape type
    Aspect Ratio 8:3 (H:V) Shape Style
    Holes & Brackets : Rear mounting Pole (4 pcs)
    Other Features : Weight 490g (Typ.) Surface Antiglare (Haze 28%)


    Three、TIANMA TM123XDHP90 Optical Details

    Basic Information : Brightness 1000 cd/m² (Typ.) Contrast Ratio 1000:1 (Typ.) (Transmissive)
    Viewing Angle 89/89/89/89 Optical Mode SFT, Normally Black, Transmissive
    Viewing Direction Symmetry Response Time 25 (Typ.)(Tr+Td) ms
    Color Performance : Chromaticity

    Wx:0.310; Wy:0.330 Color Numbers 16.7M (8-bit)
    Color Temperature 6638K Uniformity 1.25 (Max.)(15 points)
    1931 Color Gamut : NTSC Ratio 75% sRGB 98% coverage
    Adobe RGB 76% coverage DCI-P3 78% coverage
    Rec.2020 56% coverage Remarks sRGB (Rec.709, BT.709), Rec.2020 (BT.2020)
    Dispaly Performance : Outdoor Visibility Sunlight Readable Transmittance -

    Four、TIANMA TM123XDHP90 Electronics Details

    Frame Frequency : 60Hz
    Reverse Scan : Yes (U/D, L/R)

    Five、TIANMA TM123XDHP90 Backlight Details

    Back-light Features : Lamp Type WLED Amount 10S4P Life Time 10K(Min.) Hours
    Replacement - Lamp Shape 4 strings Position Edge light type
    Lamp Electrical : Voltage Input 27/30/34V (Min./Typ./Max.) Current Input 90mA (Typ.)
    Interface Features : Type FPC Position - Lamp Driver No
    Interface Detail : Brand Model Pin Pitch Pins Amount Configuration
        0.5 mm 10 pins 1 pcs

    Six、TIANMA TM123XDHP90 Interface Details

    Signal Systerm : LVDS (2 ch, 8-bit)   Logic Voltage -
    Signal Electrical : Voltage Input 3.3V (Typ.)   Current Input 460/600mA (Typ./Max.)
    Interface Features : Type FPC   Position -
    FPC Detail : Brand Model Pin Pitch Pins Amount Configuration
        0.5 mm 50 pins 1 pcs

    Seven、TIANMA TM123XDHP90 Carton Details

    Package Carton : Amount Net Weight Carton Size (L×W×H)
    16 pcs / box - 600×440×280 mm
