Application : 3D print CNC system
Industry: Technology Promotion and Application Service Industry

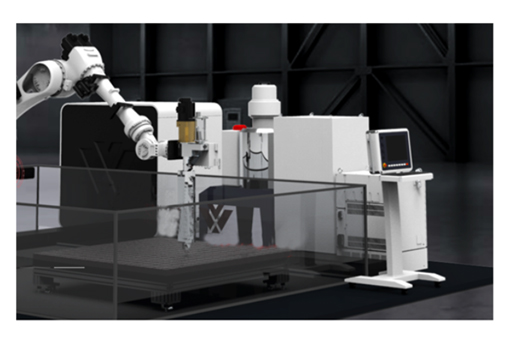

High -speed granular material printer is a industrial -grade 3D printer printer based on granularity. Compared with the traditional wire 3D printer, the high -speed particle printer directly uses the particle material for 3D printing, which can greatly reduce the printing cost. High -speed granular material printer adopts an integrated control system that integrates 3D printing control, high -speed motion control, ambient temperature control, and automatic feeding control. At the same time, high -speed granular materials printers use MKX printed heads with revolutionary high -flow extrusion technology. The output has been significantly improved, and the efficiency is particularly improved. Widely used in automotive components and models, medical aids, industrial tools, creative design, etc.
Customer requirements: The customer originally used the G150Xge-L04 with
the AMT9535 resistance screen. The G150Xge-L04 has been discontinued for a long
time. You need to re-find a replacement.
Our recommend solutions: G150XNE-L01+AMT9535
The resolution of G150XNE-L01 is 1024 (RGB) × 768 (XGA), the brightness is 500 cd/m² (TYP.), The contrast is 2500: 1, the visual angle 88/88/88/88 (Typ.)(CR≥10), Working temperature: -30 ~ 80 ° C, signal system LVDS (1 CH, 6/8 -BIT), terminal, 20 pins, backlight type: wled, 70k hours, containing LED drive, response speed 13/5 (TYP. ) (TR+TD) MS, G150XNE-L01 is suitable for industrial and car.
15-inch resistance AMT9535: The size is 332.6*257.5 mm, the action area: 311.3*235.10 mm, the viewing area 308.2*232.1 (15.0inch)), ITO thickness: 1.8mm, glass thickness 2.1mm, Front Surface: anti-glare hardcoat , Work temperature: -20 ℃ ~ 70 ℃ Storage temperature: -40 ℃ ~ 80 ℃;
Advantage of G150XNE-L01 : Innolux Chimei original 15-inch industrial LCD screen, operating temperature: -30 ~ 80 ° C, storage temperature: -40 ~ 85 ° C, high contrast, life span is greater than 70,000 hours, the brightness is 500 cd/m² (TYP.), Full perspective, 180 degrees flip showing , vibration resistance is 1.5g, long life, wide temperature, compatible with G150Xge-L04 which has been discontinued. This has a small difference in thickness and can be completely replaced. -L01 is equipped with industrial drive board, the product quality is safe and stable, and the amount of small quantity can also be supplying normally. The Q1 quarter of 2017 will only begin production. The supply is stable and cost -effective, enjoying the one -year warranty of AUO. Meet the needs of customer selection.
