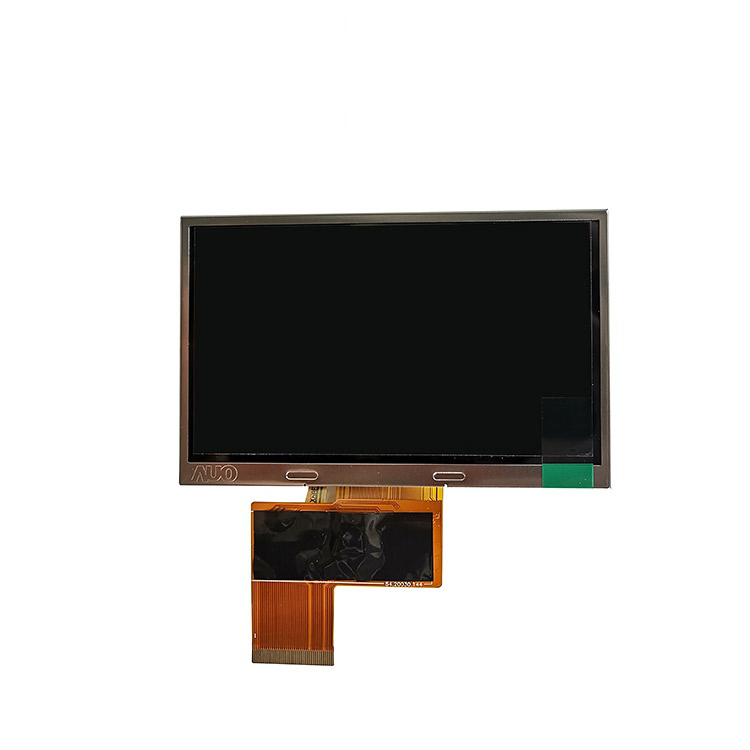

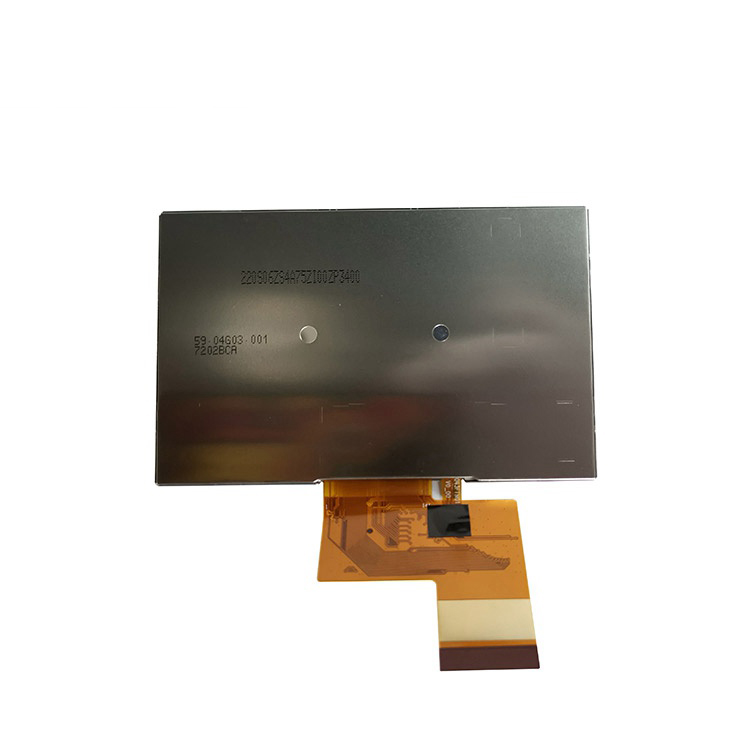

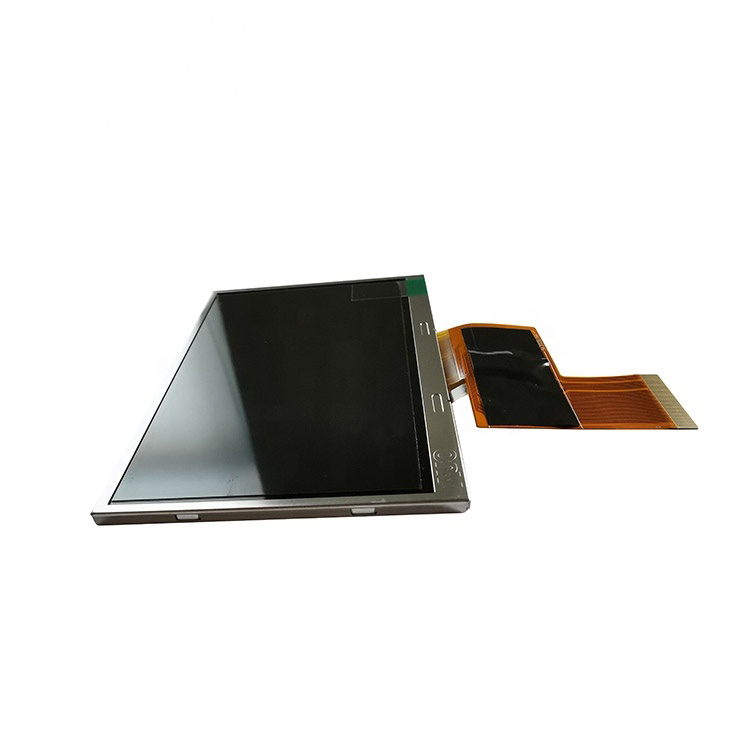

AUO 4.3inch G043FTN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | G043FTN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | G043FTN01 V0 |
| Panel Size | 4.3 inch | Designed For | Industrial |
| Maximum Ratings : | OP Temperature | -20~ 70°C | ST Temperature | -25 ~ 70 °C |
| RoHS | RoHS | Vibration Level | 1.5G (14.7 m/s²) |
| Features : | Hight Brightness ,WLED Backlight， Matte |
AUO 4.3inch G043FTN01.0 Optical Details
| Basic Information : | Luminance | 550 cd/m² (Typ.) | Contrast Ratio | 400:1 (Typ.) (Transmissive) |
| Good View at | 6 o'clock | Response Speed | 15/20 (Typ.)(Tr/Td) ms |
| Viewing Angle | 80/80/55/60 (Typ.)(CR≥10) | Operating Mode | TN, Normally White, Transmissive |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.330 | Support Color | 16.7M (8-bit) |
Color Temperature
| 6914K | White Variation | 1.33/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 53% | sRGB | 74% coverage |
| Adobe RGB | 56% coverage | DCI-P3 | 55% coverage |
| Rec.2020 | 40% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO 4.3inch G043FTN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 480(RGB)*272, WQVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.066*0.198 mm | Pixel Pitch(W×H) | 0.198*0.198 mm [128PPI] |
| Physical Size : | Active Viewing | 95.04*53.856(H) mm | Overall Dim. | 105.5(W)*67.2(H) mm |
| Bezel Opening | 100.8(W)*58.76(H) mm | Overall Depth | 2.9(Typ.) mm |
| Aspect Ratio(W:H) | 16:9 | Shape Style | |
| Other Detail : | Mass | 44.0g (Typ.) | Surface | Antiglare |
AUO 4.3inch G043FTN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 0.39W (Typ.) |
| Time Controller (T-CON) : | Embedded T-CON |
AUO 4.3inch G043FTN01.0 Interface Details
| Signal Electrical : | Input Current | 18/25mA (Typ./Max.) | Input Voltage | 3.3V (Typ.) |
| Consumption | 59.4/82.5mW (Typ./Max.) | Signal Interface | Parallel RGB (1 ch, 8-bit) |
| Logic Voltage : | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD |
| Interface Features : | Position
| - | Physical Type | FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5 mm | 40 pins | 1 pcs | |
AUO 4.3inch G043FTN01.0 Lightting Details
| Lamp Features : | Lamp Type | WLED | Amount | - | Position | Edge light type |
| Exchange | - | Lamp Shape | - | Lamp Life | 20K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 25.65/27.9V (Typ./Max.) | Input Current | 11mA (Typ.) |
| Consumption | 0.31W (Max.)
|
| Interface Features : | Position | - | Physical Type | Included in panel signal interface |
| Backlight Driver : | No |
AUO4.3inch G043FTN01.0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 50 pcs / box | - | 11.4 Kgs |
G043FTN01.0 Selection & Compatibility Guide
Review the documented specifications, connector pin assignments, power requirements and replacement checks before selecting this panel. Similar size or pin count does not establish compatibility.
Read the G043FTN01.0 selection and compatibility guide
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for G043FTN01.0. Please include your application and required quantity so we can confirm the applicable revision.
Request G043FTN01.0 Datasheet
