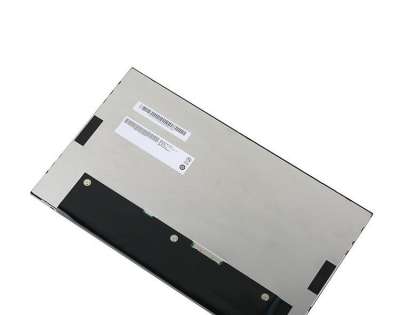

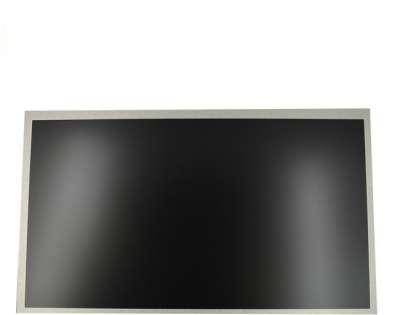

G133XTN01.3 engineering and purchasing guide
G133XTN01.3 is evaluated as an exact 13.3-inch eDP industrial module, not as a generic screen size. Before design approval or purchase, match the complete suffix on the panel label with the latest controlled datasheet and drawing.
Information to confirm before ordering
- Complete model, suffix, revision, date-code requirement and a clear label photo.
- Native resolution, interface standard, connector, pin assignment, voltage, timing and power sequence.
- Outline, active area, thickness, mounting points, connector position and cable direction.
- Brightness, viewing direction, surface treatment, backlight life and operating/storage temperature.
- Target quantity, annual demand, delivery country, required date and sample-validation plan.
Supply status, MOQ and lead time
Stock, lifecycle status, MOQ and lead time are quotation-time facts and can change. Request written confirmation for the exact G133XTN01.3 revision; do not treat a website status label as allocation or production approval.
Compatibility boundary
A matching diagonal size or resolution does not establish drop-in compatibility. Connector position, pin assignment, voltage, timing, backlight, outline, mounting, firmware assumptions and optical performance must all be compared. Validate a sample in the finished new embedded designs and compact HMI system before production release.
Datasheet and controlled documents
The controlled PDF has not been attached to this record. Request the current G133XTN01.3 datasheet; never substitute a document from a similar suffix.
Common purchasing questions
- Is G133XTN01.3 currently in stock?
- Availability must be confirmed against the required quantity, date code, delivery destination and inspection requirement when the quotation is issued.
- What is the MOQ?
- MOQ depends on current supply and packaging. Send the sample quantity and forecast so both sample and production options can be checked.
- Can a similar suffix replace G133XTN01.3?
- Not automatically. Compare the full datasheets and drawings, then validate mechanics, signal, power, backlight, optics and temperature in the target equipment.
- What should be included in an RFQ?
- Include the exact model, quantity, annual demand, application, destination, required date and any interface, brightness or temperature constraints.
- Can you supply a datasheet and dimensional drawing?
- Request the controlled documents for the exact suffix. The document revision should be recorded with the approved sample.
- How should a replacement be qualified?
- Perform label and document review, mechanical installation, power and signal tests, image and dimming checks, temperature testing and a controlled sample approval.
