G156XTN02.3 engineering and purchasing guide

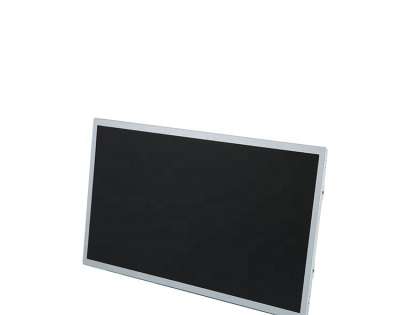

G156XTN02.3 is evaluated as an exact 15.6-inch WXGA eDP module, not as a generic screen size. Before design approval or purchase, match the complete suffix on the panel label with the latest controlled datasheet and drawing.
Information to confirm before ordering
- Complete model, suffix, revision, date-code requirement and a clear label photo.
- Native resolution, interface standard, connector, pin assignment, voltage, timing and power sequence.
- Outline, active area, thickness, mounting points, connector position and cable direction.
- Brightness, viewing direction, surface treatment, backlight life and operating/storage temperature.
- Target quantity, annual demand, delivery country, required date and sample-validation plan.
Supply status, MOQ and lead time
Stock, lifecycle status, MOQ and lead time are quotation-time facts and can change. Request written confirmation for the exact G156XTN02.3 revision; do not treat a website status label as allocation or production approval.
Compatibility boundary
A matching diagonal size or resolution does not establish drop-in compatibility. Connector position, pin assignment, voltage, timing, backlight, outline, mounting, firmware assumptions and optical performance must all be compared. Validate a sample in the finished embedded systems and legacy-resolution HMI system before production release.
Datasheet and controlled documents
The controlled PDF has not been attached to this record. Request the current G156XTN02.3 datasheet; never substitute a document from a similar suffix.
Common purchasing questions
- Is G156XTN02.3 currently in stock?
- Availability must be confirmed against the required quantity, date code, delivery destination and inspection requirement when the quotation is issued.
- What is the MOQ?
- MOQ depends on current supply and packaging. Send the sample quantity and forecast so both sample and production options can be checked.
- Can a similar suffix replace G156XTN02.3?
- Not automatically. Compare the full datasheets and drawings, then validate mechanics, signal, power, backlight, optics and temperature in the target equipment.
- What should be included in an RFQ?
- Include the exact model, quantity, annual demand, application, destination, required date and any interface, brightness or temperature constraints.
- Can you supply a datasheet and dimensional drawing?
- Request the controlled documents for the exact suffix. The document revision should be recorded with the approved sample.
- How should a replacement be qualified?
- Perform label and document review, mechanical installation, power and signal tests, image and dimming checks, temperature testing and a controlled sample approval.
