M170ETN01.1 specifications, applications and sourcing advice

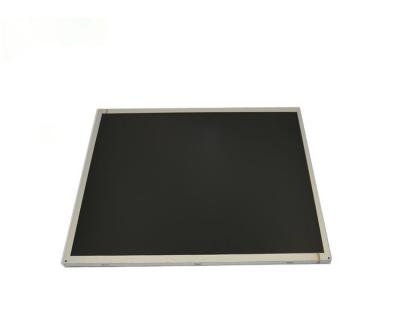

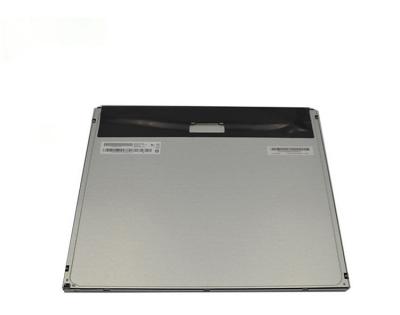

M170ETN01.1 is a 17-inch 5:4 SXGA AUO panel for monitor, HMI and legacy equipment projects that require a 30-pin dual-channel LVDS interface. Exact suffix and system compatibility remain essential.
Verification note: Values are based on the current product record. Confirm the latest manufacturer datasheet, drawing and supply status for the exact revision before approval or purchase.
Updated: · Reviewed by: Xuhong LCD Technical Content Team
Data sources:
Current AUO-LCD product record for M170ETN01.1
Latest AUO datasheet and mechanical drawing required for final approval
Method: Specifications are checked against the current product record and converted into practical compatibility and purchasing guidance. Final approval requires the latest manufacturer documentation for the exact suffix.
Key specifications
Panel size
17.0 inch
Resolution
1280 × 1024 (SXGA)
Brightness
250 cd/m² typical
Contrast
1000:1 typical
Interface
Dual-channel 8-bit LVDS, 30-pin 1.0 mm connector
Viewing angle
85/85/80/80 typical
Operating range
0°C to 50°C listed operating range
Outline
358.5 × 296.5 × 7.7 mm typical; 10.8 mm maximum depth
Confirm the 358.5 × 296.5 mm outline, 30-pin dual-channel LVDS mapping, 5 V panel supply, separate backlight connector and driver, mounting holes, viewing direction and 0°C to 50°C operating requirement.
Compatibility and replacement guidance
A 17-inch SXGA image format does not prove compatibility. Compare LVDS channel count, bit depth, connector model and position, pin map, supply voltage, backlight circuit, outline, depth and mounting.
