AUO G084SAN01.0 8.4-inch Industrial LCD Panel

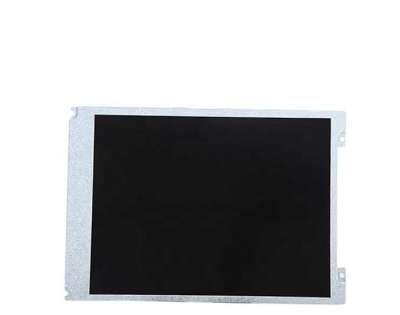

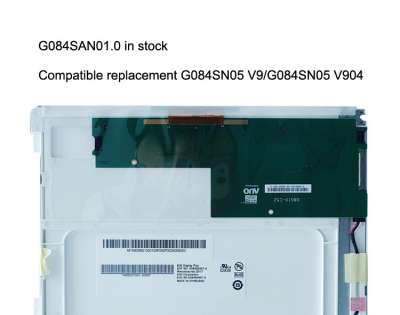

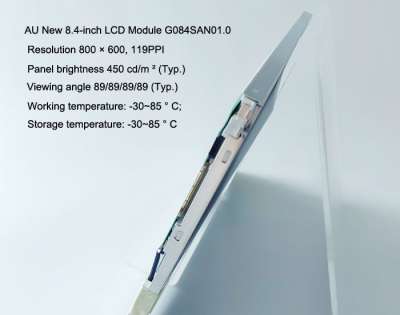

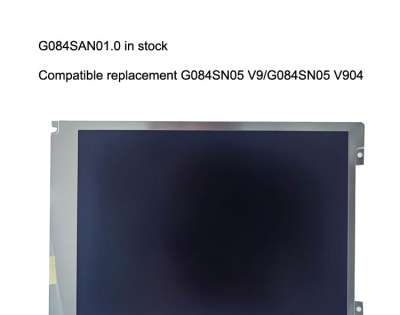

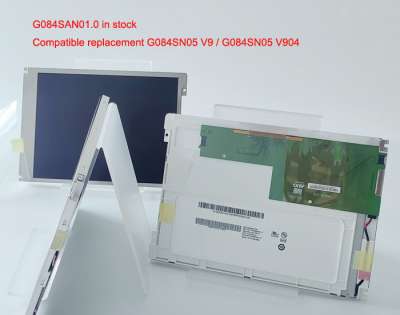

  • AUO G084SAN01.0 8.4-Inch SVGA LVDS Industrial LCD
  • AUO G084SAN01.0 8.4-Inch SVGA LVDS Industrial LCD
  • AUO G084SAN01.0 8.4-Inch SVGA LVDS Industrial LCD
  • AUO G084SAN01.0 8.4-Inch SVGA LVDS Industrial LCD
  • Model:G084SAN01.0
  • Brand:AUO
  • Size:8.4inch
  • Resolution:800×600
  • Brightness:450 cd/m² (Typ.)
  • Perspective:89/89/89/89
  • Interface:LVDS
  • Operating Temp.:-30 ~ 85 °C
  • Production State:In Production
  • Click For Price
  • Technical Parameters

  • 1.AUO G084SAN01.0 Application Details

    Basic Detail :

    Manufacturer

    AUO

    Model Name

    G084SAN01.0

    Panel Type

    a-Si TFT-LCD , LCM



    Panel Size

    8.4inch

    Designed For

    Industrial

    Maximum Ratings :



    OP Temperature

    -30 ~ 85 °C

    ST Temperature

    -30 ~ 85 °C

    Vibration Level

    1.5G (14.7 m/s²)

    RoHS

    RoHS

    Features :


    Wide Temperature，WLED   Backlight，Life≥50K hours，With LED Driver，U/D，L/R Reverse，6/8 bit，Matte


    2.AUO G084SAN01.0 Mechanical Details

    Pixel Features :

    Number of Pixel

    800(RGB)×600, SVGA

    Arrangement

    RGB Vertical Stripe

    Dot Pitch(W×H)

    0.071×0.213 mm

    Pixel Pitch(W×H)


    0.213×0.213 mm  [119PPI]

    Physical Size :

    Active Viewing

    170.4(W)×127.8(H) mm

    Overall Dim.

    203(W)×142.5(H) mm

    Bezel Opening

    174.15(W)×131.2(H) mm

    Overall Depth

    8.0±0.3 mm

    Outline Features :

    Form Shape

    Flat Rectangle

    Orientation

    Landscape type

    Aspect Ratio(W:H)

    4:3

    Shape Style

    -

    Fixation :

    Face mounting holes (4 PCS) on left,   right bezel

    Other Detail :


    Mass

    TBD

    Surface

    Antiglare, Hard coating (3H)


    3.AUO G084SAN01.0 Optical Details

    Basic Information :

    Luminance (cd/m²)

    450 (Typ.)

    Contrast Ratio

    1000 : 1 (Typ.) (Transmissive)

    Good View at

    Symmetry

    Response Speed

    15/10 (Typ.)(Tr/Td) (ms)

    Viewing Angle

    89/89/89/89 (Typ.)(CR≥10)

    Operating Mode

    AHVA, Normally Black, Transmissive

    Color Performance :

    Chromaticity

    Wx:0.310; Wy:0.330

    Support Color

    262K/16.7M (6-bit / 8-bit)

    Color Temperature

    6638K

    White Uniformity

    1.33/1.43 (Typ./Max.)(9 points)


    4.AUO G084SAN01.0 Electronics Details

    Refresh Rate :

    60Hz

    Reverse Scan :

    Yes (U/D, L/R)



    5.AUO G084SAN01.0 Interface Details

    Signal Electrical :

    Input Current

    100/120mA (Typ./Max.)

    Input Voltage

    3.3V (Typ.)

    Consumption

    0.3/0.4W (Typ./Max.)

    Signal Interface

    LVDS (1 ch, 6/8-bit)

    Interface Features :

    Position

    -

    Physical Type

    Connector


    Signal Interface :

    Brand

    Model

    Amount

    Pin Pitch

    Pin Amount

    Pin Assignment

    STM

    MSB24013P20HA

    1 pcs

    1.0 mm

    20 pins













    6.AUO G084SAN01.0 Lightting Details

    Lamp Features:

    Lamp Type

    WLED

    Exchange

    -

    Position

    Edge light type

    Amount

    -

    Lamp Shape

    -

    Life

    50K(Min.) (Hours)

    Interface Features :

    Position

    -


    Physical Type

    Connector


    Interface Detail :

    Brand

    Model

    Amount

    Pin Pitch

    Pin Amount

    Pin Assignment

    STM

    MSB24038P4D

    1 pcs


    1.25 mm

    4 pins


    Backlight Driver :

    With LED Driver

    Driver Electrical :

    Input Current

    TBD


    Input Voltage

    10.8/12.0/12.6V (Min./Typ./Max.)


    AUO G084SAN01.0 Industrial LCD Overview

    The AUO G084SAN01.0 is an 8.4-inch industrial TFT-LCD module with 800 × 600 SVGA resolution, 450 cd/m² typical brightness, an AHVA normally-black display mode and a 1-channel LVDS interface. Its listed -30 to 85°C operating range supports evaluation for equipment used in changing industrial environments.

    Typical Application Fit

    • Industrial HMI and operator terminals
    • Factory automation and process-control equipment
    • Test, measurement and diagnostic systems
    • Embedded equipment requiring an 8.4-inch 4:3 LVDS display

    Selection and Integration Checks

    1. Confirm the 203 × 142.5 mm outline and 170.4 × 127.8 mm active area.
    2. Verify the mounting-hole arrangement and enclosure fit.
    3. Confirm the 20-pin LVDS connector, pin assignment, 6/8-bit mode and timing.
    4. Check the 3.3 V signal supply and integrated backlight-driver requirements.
    5. Validate brightness, viewing angle and the -30 to 85°C requirement at complete-system level.
    6. Review touch panel, cable and controller-board requirements separately.

    Replacement Guidance

    Do not treat G084SAN01.0 as a guaranteed or plug-and-play replacement for G084SN05, G084SN03 or another 8.4-inch panel without an engineering comparison. Matching size and resolution do not confirm mechanical, electrical or timing compatibility.

    Frequently Asked Questions

    Is G084SAN01.0 currently available?

    Availability depends on quantity, destination, required date and current supply status. Include these details in your request for a current response.

    Can G084SAN01.0 replace G084SN05 or G084SN03?

    Compatibility must be checked using the complete model suffix, panel label and latest documentation. Compare dimensions, mounting, connector, pin assignment, voltage, timing, backlight and temperature requirements.

    Does the panel include a backlight driver?

    The current product record lists an integrated LED driver with 12.0 V typical input. Confirm the latest electrical specification before design-in.

    What should be included in an RFQ?

    Provide the exact model, quantity, application, delivery country, required date and any requirements for touch, cable, controller board or documentation.

    Related AUO LCD Resources

    Request Technical and Supply Support for G084SAN01.0

    Send your quantity, application, delivery country and existing display information. We will review current supply status and the technical checks required for your project.

Get In Touch

Industrial LCD screen information
G084XAN01.0 discontinuation notice07-01
G104XVN01.0 Product Engineering Change Notice for 10.4-inch TFT-LCD Modules06-25
AUO LCD screen product lifecycle management: smooth EOL process ensures customer06-10
AU Optronics 10.1-inch G101EAN TFT-LCD Module Incoming Inspection Specification 06-09
G150XAN02 V0 displays abnormal Failure Analysis Report06-03
AU 8.5-inch Wide Temperature Industrial Screen G085VW01 V0 Formally Discontinued06-01

G084SAN01.0 engineering and purchasing guide

G084SAN01.0 is evaluated as an exact 8.4-inch industrial module, not as a generic screen size. Before design approval or purchase, match the complete suffix on the panel label with the latest controlled datasheet and drawing.

Information to confirm before ordering

Supply status, MOQ and lead time

Stock, lifecycle status, MOQ and lead time are quotation-time facts and can change. Request written confirmation for the exact G084SAN01.0 revision; do not treat a website status label as allocation or production approval.

Compatibility boundary

A matching diagonal size or resolution does not establish drop-in compatibility. Connector position, pin assignment, voltage, timing, backlight, outline, mounting, firmware assumptions and optical performance must all be compared. Validate a sample in the finished compact machine controls and test instruments system before production release.

Datasheet and controlled documents

The controlled PDF has not been attached to this record. Request the current G084SAN01.0 datasheet; never substitute a document from a similar suffix.

Common purchasing questions

Is G084SAN01.0 currently in stock?
Availability must be confirmed against the required quantity, date code, delivery destination and inspection requirement when the quotation is issued.
What is the MOQ?
MOQ depends on current supply and packaging. Send the sample quantity and forecast so both sample and production options can be checked.
Can a similar suffix replace G084SAN01.0?
Not automatically. Compare the full datasheets and drawings, then validate mechanics, signal, power, backlight, optics and temperature in the target equipment.
What should be included in an RFQ?
Include the exact model, quantity, annual demand, application, destination, required date and any interface, brightness or temperature constraints.
Can you supply a datasheet and dimensional drawing?
Request the controlled documents for the exact suffix. The document revision should be recorded with the approved sample.
How should a replacement be qualified?
Perform label and document review, mechanical installation, power and signal tests, image and dimming checks, temperature testing and a controlled sample approval.

Related engineering resources

Request G084SAN01.0 price, stock and compatibility review
