eDP vs LVDS: Quick Answer
eDP and LVDS are different display interfaces and are not directly
interchangeable. They use different signaling, link control and
initialization methods. A cable that physically fits does not prove
electrical or protocol compatibility, and a passive adapter cable cannot
normally convert LVDS into eDP or eDP into LVDS.
When the host output and LCD panel interface are different, an active bridge or controller is generally required. The
bridge must support the exact source interface, destination interface,
native resolution, refresh timing, color depth, power sequence and
backlight-control requirements.
eDP and LVDS Interface Comparison
| Comparison | LVDS Panel Interface | eDP |
|---|
| Architecture | Serialized pixel-data channels with a clock channel | Packet-based Embedded DisplayPort architecture |
|---|
| Video Link | Commonly single- or dual-channel LVDS | One or more Main Link lanes, depending on the panel and host |
|---|
| Management | Panel timing and control are mainly configured by the host/controller | Uses AUX communication, link management and model-specific control |
|---|
| Initialization | Requires the specified timing and power sequence | Requires link training plus the specified power and control sequence |
|---|
| Connector Check | Pin count, mapping, voltage, connector position and cable orientation must match | Pinout, lane count, link rate, AUX, HPD, power and backlight controls must match |
|---|
| Passive Conversion | A passive cable does not normally convert between LVDS and eDP. |
|---|
| Compatibility Rule | Matching screen size, resolution or connector appearance does not establish compatibility. |
|---|
Why a Passive Cable Is Not Enough
A passive cable can only route signals that are already electrically and
logically compatible. It cannot translate LVDS serialized pixel channels
into the packet-based eDP Main Link, perform eDP link training, provide AUX
communication or generate the destination panel's required control
sequence.
Connector appearance can also be misleading. Two panels may both use a
30-pin or 40-pin connector while having different pin assignments, supply
voltages, lane or channel configurations, backlight controls and connector
positions. Connecting an unverified cable can result in no image,
unstable operation or hardware damage.

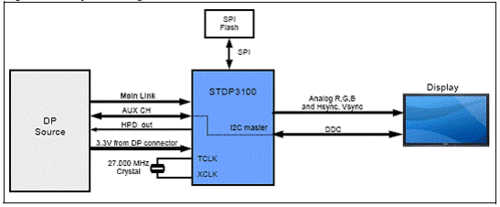

When Is an Active Converter Required?
An active converter is generally required when an LVDS host must drive an
eDP panel or an eDP host must drive an LVDS panel. The converter must
receive the source video format and generate the destination interface
expected by the LCD.
Before selecting a bridge board, confirm that its hardware and firmware
support the required resolution, refresh rate, color depth, timing, lane
or channel configuration, power sequence and backlight controls. Also
evaluate boot behavior, sleep and wake operation, conversion latency,
signal integrity, electromagnetic compatibility and long-term component
availability.
LVDS-to-eDP and eDP-to-LVDS Conversion Checklist
- Record the complete host, controller and original LCD model numbers,
including every suffix and revision.
- Confirm whether the host output and replacement panel use LVDS or eDP.
- Compare native resolution, refresh timing, pixel clock, color depth and
supported display orientation.
- For LVDS, verify single- or dual-channel operation, bit depth and the
applicable color mapping.
- For eDP, verify lane count, link rate, AUX behavior, HPD and any
model-specific firmware requirements.
- Compare connector model, pin assignment, pitch, position and cable
orientation.
- Verify panel voltage, grounding, current, inrush requirements and
power-on/power-off sequence.
- Check backlight voltage, LED driver, enable signal, PWM polarity,
dimming frequency and brightness-control range.
- Compare active area, outline dimensions, thickness, mounting points and
connector clearance.
- Test cold boot, restart, sleep/wake, image stability, brightness control,
temperature performance and fault recovery in the final equipment.
Which Interface Should a New Industrial Design Use?
Neither interface is universally better for every project. Use the
interface directly supported by the host processor or controller and by
multiple panels that meet the product's lifecycle, mechanical, optical and
environmental requirements.
eDP supports DisplayPort-family link management and is widely used in many
newer embedded displays. LVDS remains common in established industrial
equipment and long-running controller platforms. Host support, software
and firmware capability, cable design, panel availability and replacement
strategy are more important than choosing an interface by name alone.
Related Industrial LCD Resources
Frequently Asked Questions
Is eDP the same as LVDS?
No. eDP and LVDS use different signaling, link-control and initialization
architectures. They are not directly interchangeable.
Can LVDS be converted to eDP with a passive cable?
Normally no. An active bridge or controller is generally required to
receive the LVDS signal and generate the eDP Main Link, AUX communication,
link training and panel-control sequence.
Can eDP be converted to LVDS?
Yes, but an active eDP-to-LVDS bridge is normally required. The bridge
must support the host output, panel resolution, timing, LVDS channel
configuration, power sequence and backlight controls.
Are all 30-pin eDP panels interchangeable?
No. Panels with the same pin count can have different pin assignments,
lane counts, link rates, supply voltages, backlight controls, connector
positions and mechanical dimensions.
Are all 30-pin LVDS panels interchangeable?
No. Channel count, bit depth, color mapping, pinout, voltage, timing,
connector position and mechanical structure can differ between LVDS
panels.
Does matching resolution guarantee LCD compatibility?
No. Resolution is only one requirement. Interface type, timing, voltage,
connector pinout, backlight control, dimensions, mounting and firmware
support must also be verified.
Which is better for an industrial LCD, eDP or LVDS?
The better choice is the interface supported by the host and by suitable
panels with an acceptable lifecycle. eDP is common in many newer designs,
while LVDS remains widely used in established industrial equipment.
What information is needed for an interface conversion review?
Provide the complete original LCD model, replacement model, host or
controller model, connector and cable details, resolution, quantity and
application. Photos of the panel labels and connectors are also useful.
Technical scope: This guide provides general interface-selection and
conversion checks. Final approval requires the applicable LCD
specifications, controller documentation, bridge documentation and
validation in the intended equipment.
