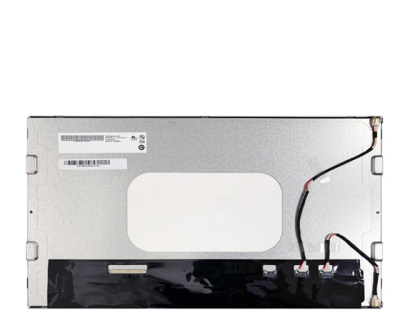

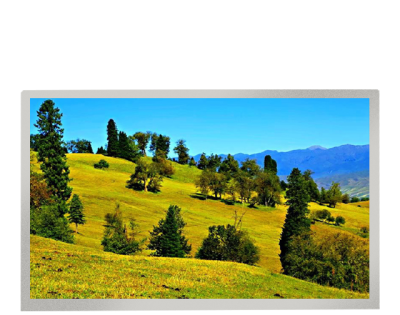

AUO G156HAN04.1 15.6 Inch FHD LCD Display – 1500 nits Sunlight Readable Industrial Panel
Product Overview
The AUO G156HAN04.1 is a 15.6-inch industrial-grade TFT-LCD display module manufactured by AU Optronics (AUO). This panel is specifically engineered for outdoor and extreme environment applications, delivering stunning Full HD (1920×1080) resolution with an exceptional 1500 cd/m² high brightness that ensures perfect visibility even in direct sunlight.
Featuring AHVA (AUO Advanced wide Viewing Angle) matrix technology, this display offers full 89°/89°/89°/89° viewing angles with no grayscale inversion effect—a significant advantage over conventional TN panels. With 1000:1 contrast ratio, -30°C to 70°C wide operating temperature range, and >50,000 hours backlight life, the G156HAN04.1 is built to perform reliably in the most demanding industrial and outdoor environments.
1.AUO G156HAN04.1 Application Details
Basic Info : | Panel Brand | AUO | Panel Model | G156HAN04.1 |
Diagonal Size | 15.6" | Application | Industrial,Outdoor High Brightness |
Panel Type | a-Si TFT-LCD , LCM |
|
|
Reliability : | Operating Temp. | -30 ~~ 70 °C | Storage Temp. | -30 ~~ 70 °C |
RoHS State | RoHS | Vibration | 1.5G (14.7 m/s²) |
Specific Features : | Srgb,Wide Temperature,Ultra High Brightness,WLED Backlight,Life≥50K hours，With LED Driver，Reverse I/F,Matte |
2.AUO G156HAN04.1 Mechanical Details
Pixel Features : | Pixel Format | 1920(RGB)×1080, FHD | Dot Pitch(W×H) | 0.05975×0.17925 (H×V) |
Configuration | RGB Vertical Stripe | Pixel Pitch(W×H) | 0.17925×0.17925 (H×V) [141PPI] |
Mechanical Size : | Active Viewing | 344.16(H) × 193.59(V) | Bezel Area(mm). | 347.06(H) × 196.49(V) |
Outline Dim.(mm) | 363.8(H) × 215.9(V) | Depth(mm) | 13/19 (Typ./Max.) |
Outline Features : | Form Factor | Flat Rectangle | Orientation | Landscape type |
Aspect Ratio | 16:9 (H:V) | Shape Style |
|
Mounting : | Side mounting holes (4-M3) on left, right bezel |
Other Features : | Weight | 1000g (Max.) | Surface | Antiglare, Hard coating (2H) |
3.AUO G156HAN04.1 Optical Details
Basic Information : | Brightness | 1500 cd/m² | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
Viewing Angle | 89/89/89/89(Typ.)(CR≥10) | Optical Mode | AHVA, Normally Black, Transmissive |
Viewing Direction | Symmetry | Response Time | 25 (Typ.)(Tr+Td) |
Color Performance : | Chromaticity | Wx:0.313; Wy:0.329 | Color Numbers | 16.7M (8-bit) |
Color Temperature | 6485K | White Variation : | 1.25/1.33 (Typ./Max.)(9 points) |
1931 Color Gamut : | NTSC Ratio | 76% | sRGB | 100% coverage |
Adobe RGB | 78% coverage | DCI-P3 | 79% coverage |
Rec.2020 | 57% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
4.AUO G156HAN04.1 Electronics Details
Frame Frequency : | 60Hz |
Reverse Scan : | No |
Power Consumption : | 28.51W (Max.) |
5.AUO G156HAN04.1 Backlight Details
Lamp Features: | Lamp Type | WLED | Amount | - | Life Time | 50K(Min.) Hours |
Replacement | - | Lamp Shape | - | Position | Edge light type (Top and Bottom) |
Interface Features : | Position | - | Type | Connector |
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
|
JST | S14B-PH-SM6-K-TB | 1pcs | 14pins | 2.0mm |
|
|
Backlight Driver : | With LED Driver |
Driver Electrical : | Voltage Supply | 24.0±1.2V | Current Supply | 1.1A (Typ.) |
|
Consumption | 22.0/26.4W (Typ./Max.) |
6.AUO G156HAN04.1 Interface Detail
Signal Systerm : | LVDS (2 ch, 8-bit) | Consumption | 1.75/2.11W (Typ./Max.) |
Signal Electrical : | Voltage Input | 3.3V (Typ.) | Current Input | 530/640mA (Typ./Max.) |
Interface Features : | Type | Connector | Position | Down left of panel |
Interface Detail : | Brand | Model | Quantity | Pins | Pitch | Pin Configuration |
STM | MSBKT2407P30HB | 1pcs | 30pins | 1.0mm | LVDS-30P2C8B-160A |
7.AUO G156HAN04.1 Packing Details
Package Type | Pcs/Package | Box/Package | Package LWH (mm) | G.W (kgs) | Volume (m³) |
Carton | 7 | 1 | 508×408×279 | 11.0 | 0.0578 |
Key Advantages
1. 1500 cd/m² Ultra-High Brightness – Sunlight Readable
The G156HAN04.1 delivers an industry-leading 1500 cd/m² typical brightness—approximately 3 to 6 times brighter than standard industrial displays. This ensures:
Perfect readability in direct sunlight and high-ambient-light environments;
Elimination of sun glare and reflection issues;
Reduced need for expensive optical bonding or additional shielding;
2. AHVA Full Viewing Angle Technology
Incorporating AUO's proprietary AHVA technology (similar to IPS), this panel provides full 89-degree viewing angles from all directions. Key benefits include:
No grayscale inversion or significant color shift when viewed from an angle;
Much lower contrast decrease when increasing viewing angle;
Ideal for applications where multiple operators need to view the screen from different positions.
3. Ultra-Wide Operating Temperature (-30°C to 70°C)
With a remarkable operating temperature range of -30°C to 70°C, this panel is designed for extreme environments：
-30°C cold start validated for freezing conditions;
70°C high-temperature operation with 1000-hour aging test;

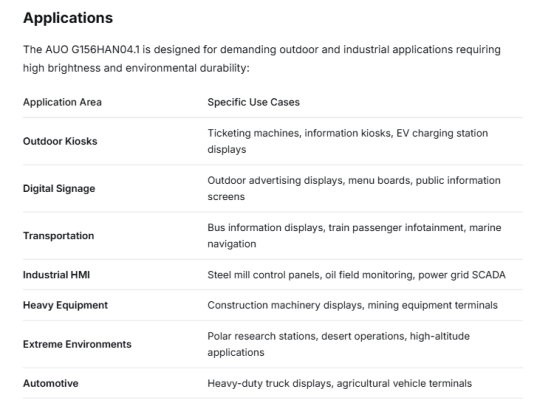

Suitable for steel mills, oil fields, polar research stations, and desert applications
4. Exceptional Durability & Reliability
>50,000 hours backlight life ensures long-term reliability in continuous operation
1.5G vibration resistance for transportation and heavy equipment applications
Anti-glare surface treatment with 2H hard coating reduces reflections and provides scratch resistance
Full metal frame with heat dissipation cavity for thermal management
5. High-Quality Visual Performance
FHD (1920×1080) resolution with 141 PPI pixel density for crisp, detailed imagery
1000:1 contrast ratio for deep blacks and vibrant colors
100% sRGB color gamut for accurate color reproduction
16.7M colors (8-bit, no FRC dithering)
Quality Assurance
We supply 100% original AUO displays with strict quality control. Each unit undergoes comprehensive inspection to ensure:
No dead pixels or visual defects
Consistent brightness and color uniformity
Authentic AUO packaging and labeling
Full compliance with manufacturer specifications
Why Choose Us?
Factory Direct Pricing – Competitive rates for both sample and bulk orders
Global Shipping – Fast and reliable delivery worldwide
Technical Support – Expert assistance for integration and compatibility questions
Inventory Availability – Stable supply for ongoing production needs
Quality Guarantee – 100% tested before shipment

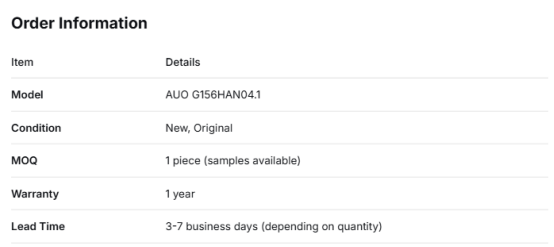

Ready to order or need more information?
Contact us today for a quote or technical consultation.
Differentiation and comparison with models of the same series/size reference:
Comparison item | G156HAN04.1 | G156HAN03.1 | G156XTN02.3 | G156XTN02.3 |
Brightness | 1500 cd/m² | 400 cd/m² | 250 cd/m² | 1000 cd/m² |
Resolution | FHD (1920×1080) | FHD (1920×1080) | HD (1366×768) | FHD (1920×1080) |
Viewing angle | 89/89/89/89° | 89/89/89/89° | 170°/160° | 89/89/89/89° |
Display technology | AHVA | AHVA | TN | AHVA |
Interface | LVDS (2 ch) | eDP | eDP | LVDS |
Operating Temperature | -30°C ~ 70°C | 0°C ~ 50°C | 0°C ~ 50°C | -30°C ~ 85°C |
Backlight lifespan | >50000 hours | 50000 hours | 15000 hours | 50000 hours |
Production Status | Mass production | Mass production | Mass production | Mass production |
