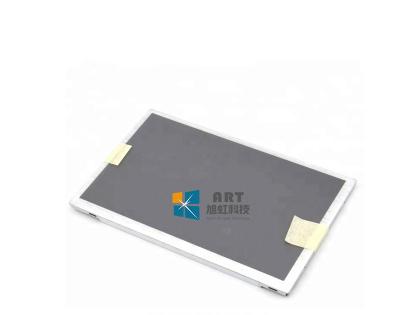

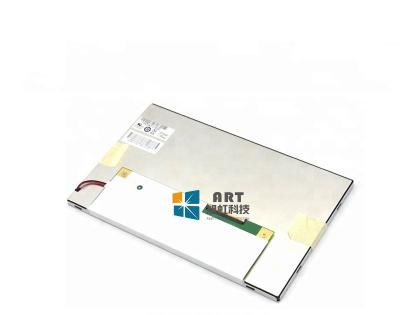

AUO C070VAN02.4 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | C070VAN02.4 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 7.0” | Designed For | Automotive Display,Outdoor High Brightness |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s²) |
| Features : | Srgb,Wide Temperature,3G Vibration,Ultra High Brightness,U/D/L/R Reverse,WLED Backlight,Matte |
AUO C070VAN02.4 Optical Details
| Basic Information : | Luminance | 1000cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 9/11 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.298; Wy:0.321 | Display Colors | 16.7M (8-bit) |
Color Temperature
| 7464K | White Variation | 1.25 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 100% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO C070VAN02.4 Mechanical Details
| Pixel Features : | Number of Pixel | 800*480(RGB), WVGA | Arrangement | RGB Horizontal Stripe |
| Dot Pitch(W*H) | 0.1905*0.0635 mm | Pixel Pitch(mm) | 0.1905*0.1905 (H*V) [133PPI] |
| Physical Size : | Active Viewing(mm) | 152.4(H) * 91.44(V) | Bezel Area (mm) | 157.35(H) *95.0(V) |
| Outline Dim.(mm) | 167.3(H) *109.2(V) | Depth(mm) | 6.68/11.88 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 15:9(H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting Pole (4-M2) |
| Other Spec : | Weight | TBD | Treatment | Antiglare |
AUO C070VAN02.4 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
AUO C070VAN02.4 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3/13/20/-8V (Typ.)(VDD/AVDD/VGH/VGL) | Current Supply |
14.2/22.5/1.17/1.07mA (Typ.)(IDD/AIDD/IGH/IGL) |
| Signal Voltage | 0≤VIL≤0.3VDD; 0.7VDD≤VIH≤VDD | Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand
| Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5mm | 50 pins | 1 pcs | |
AUO C070VAN02.4 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 20S4P | Position | Edge light type |
| Exchange |
- | Lamp Shape | 4 strings | Lamp Life | 10K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 21.6/24/27.2V (Min./Typ./Max.) | Input Current | 80/85mA (Typ./Max.) |
| Consumption | - |
| Interface Features : | Position | - | Physical Type |
FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5mm | 10 pins | 1 pcs | |
Backlight Driver :
| No |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for C070VAN02.4. Please include your application and required quantity so we can confirm the applicable revision.
Request C070VAN02.4 Datasheet
