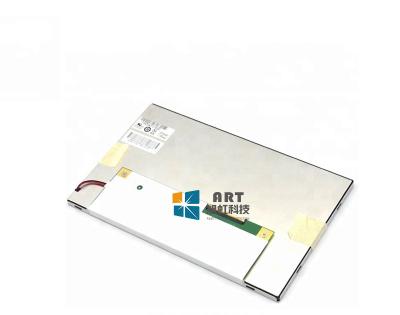

AUO C090EAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | C090EAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | Automotive Display |
| Panel Size | 9.0” | Designed For | Automotive Display,Outdoor High Brightness |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s² ) |
| Features : | Wide Temperature,3G Vibration, Hight Brightness，WLED Backlight,Matte，U/D,L/R Reverse |
AUO C090EAN01.1 Optical Details
| Basic Information : | Luminance | 680cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/15 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.298; Wy:0.314 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7589K | White Variation | 1.25 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 96% coverage |
| Adobe RGB | 72% coverage | DCI-P3 | 73% coverage |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO C090EAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*720 [WXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.05175*0.15525 (H*V) | Pixel Pitch(mm) | 0.15525*0.15525 (H*V) [163PPI] |
| Physical Size : | Active Viewing(mm) | 198.72(H) *111.78(V) | Bezel Area (mm) | 202.02(H) *114.74(V) |
| Outline Dim.(mm) | 210(H) × 126.8(V) | Depth(mm) | 7.1 (Typ.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type |
| Other Spec : | Weight | TBD | Treatment | Antiglare |
AUO C090EAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
AUO C090EAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3/3.3V (Typ.)(VDD/AVDD) | Current Supply | 150/420mA (Typ.)(IDD/IDDA) |
| Signal Voltage |
| Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand
| Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | FH52-40S-0.5SH | 0.5mm | 40 pins | 1 pcs | |
AUO C090EAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 6S3P | Position | Edge light type |
| Exchange |
- | Lamp Shape | 3strings | Lamp Life | 10K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 20.4V (Max.) | Input Current | 80/85mA (Typ./Max.) |
| Consumption | 4.9W (Max.) |
| Interface Features : | Position | - | Physical Type |
FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5mm | 8 pins | 1 pcs | BLE-8PINS-AAANNCCC |
AUO C090EAN01.1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 30 pcs / box | 15 Kgs | 520*340*250 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for C090EAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
