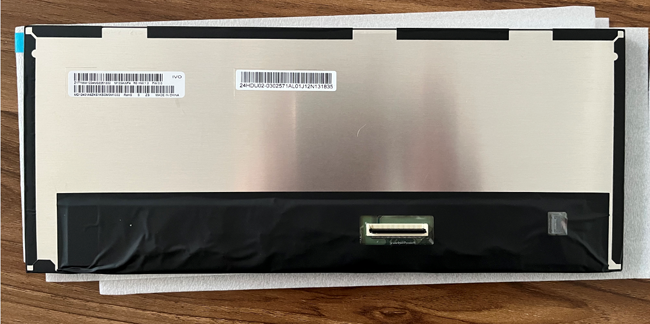

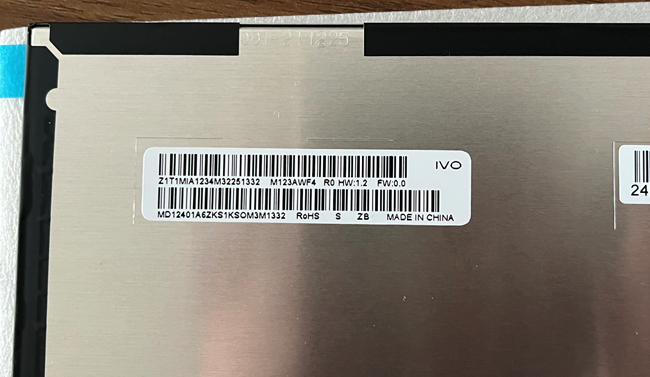

IVO M123AWF4 R0 Application Details
| Basic Detail : | Manufacturer | IVO | Model Name | M123AWF4 R0 |
| Panel Type | a-Si TFT-LCD , LCM | | |
| Panel Size |
12.3 inch | Designed For | Outdoor High Brightness，Automotive Display |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 90 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s²) |
| Features : | Wide Temperature，3G Vibration，Ultra High Brightness，WLED Backlight，Bar Display |
IVO M123AWF4 R0 Optical Details
| Basic Information : | Luminance | 1000 cd/m² (Typ.) | Contrast Ratio | 1000:1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 25 (Typ.)(Tr+Td) ms |
Viewing Angle
| 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | IPS, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.300; Wy:0.320 | Support Color | 16.7M (8-bit) |
| Color Temperature | 7351K | White Variation | 1.25/1.43 (Typ./Max.)(9 points) |
| 1931 Color Gamut : | NTSC Ratio | 75% | sRGB | 97% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 78% coverage |
| Rec.2020 | 56% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
IVO M123AWF4 R0 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*720 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0507*0.1521 mm | Pixel Pitch(W*H) | 0.1521*0.1521 mm [167PPI] |
| Physical Size : | Active Viewing | 292.032(W)*109.512(H) mm | Overall Dim. | 299.03(W)*123.012(H) mm |
Bezel Opening
| - | Overall Depth | 5.9/8.02 (Typ./Max.) mm |
| | | | | |
| Outline Features : | Form Shape | Flat Rectangle | Orientation | Landscape type |
| Aspect Ratio(W:H) | 8:3 | Shape Style | |
| Fixation : | Without |
| Other Detail : | Mass | 349/380g (Typ./Max.) | Surface | Hard coating (3H) |
IVO M123AWF4 R0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
| Total Consumption : | 14.48W (Max.) |
IVO M123AWF4 R0 Interface Details
| Signal Electrical : | Input Current | 460mA (Max.) | Input Voltage |
3.3V (Typ.) |
| Consumption | 1.38W (Max.) | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | - | | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | BJD-101049-205050 | | 50 pins | 1 pcs | |
IVO M123AWF4 R0 Lightting Details
Lamp Features :
| Lamp Type | WLED | Amount | 10S4P | Position | Edge light type |
| Exchange | - | Lamp Shape | 4 strings | Lamp Life | 30K(Min.) (Hours) |
Lamp Electrical :
| Input Voltage | 36.3V (Max.) | Input Current | 90mA (Typ.) |
| Consumption | 13.1W (Typ.) |
| Interface Features : | Position | - | | Physical Type | Included in signal interface |
| Backlight Driver : | No |
IVO M123AWF4 R0 Packing Details
| Package Box : | Amount | Size (L*W*H) | Weight |
| 40 pcs / box | - | - |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for M123AWF4 R0. Please include your application and required quantity so we can confirm the applicable revision.
Request M123AWF4 R0 Datasheet
