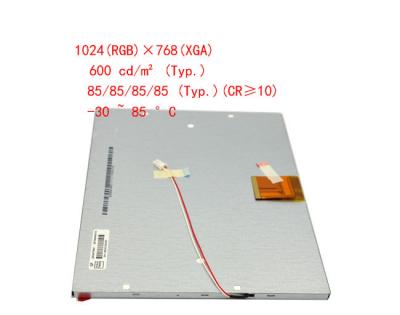

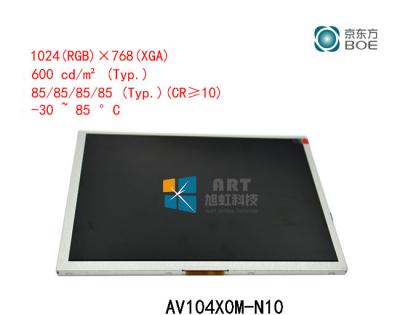

BOE AV104X0M-N10 Application Details
| Basic Detail : | Manufacturer | BOE | Model Name | AV104X0M-N10 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 10.4” | Designed For | Industrial，Automotive Display |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | |
| Features : | Wide Temperature, Hight Brightness，WLED Backlight,Matte，Life>=50K hours,180°;Reverse，6/8bit |
BOE AV104X0M-N10 Optical Details
| Basic Information : | Luminance | 600 cd/m² (Typ.) | Contrast Ratio | 1100 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 15/20 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | - | Display Colors | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Color Temperature | - | White Variation | 1.25 (Typ.)(9 points) |
BOE AV104X0M-N10 Mechanical Details
| Pixel Features : | Number of Pixel | 1024(RGB)*768 [XGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch (mm) | 0.0685*0.2055 mm (H*V) | Pixel Pitch(mm) | 0.2055*0.2055 mm (H*V) [123PPI] |
| Physical Size : | Active Viewing(mm) | 210.4*157.8 mm (H*V) | Bezel Area (mm) | 215.4*161.8 mm (H*V) |
| Outline Dim.(mm) | 230*180.2 mm (H*V) | Depth(mm) | 10.5 (Typ.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| Mounting : | Side mounting holes (4-M3) on left, right bezel |
| Other Spec : | Weight | TBD | Treatment | - |
BOE AV104X0M-N10 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
BOE AV104X0M-N10 Interface Detail
| Signal Electrical : | Signal Interface | LVDS (1 ch, 6/8-bit) | Logic Voltage |
- |
| Signal Electrical : | Voltage Input | 3.3V (Typ.)
| Current Input | TBD |
| Consumption | 5.28W (Typ.) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| IRISO |
IMSA-9686S-20B-GF4N
| 0.5mm | 20 pins | 1 pcs | LVDS-20P1C8B-010H |
BOE AV104X0M-N10 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 11S2P | Position | Edge light type |
| Exchange |
- | Lamp Shape | 2strings | Lamp Life | 50K(Typ.) (Hours) |
| Lamp Electrical : | Input Voltage | 33.0V (Typ.) | Input Current | 80mA (Typ.) |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 1.0mm | 4pins | 4 pcs |
|
| Backlight Driver : | No |
