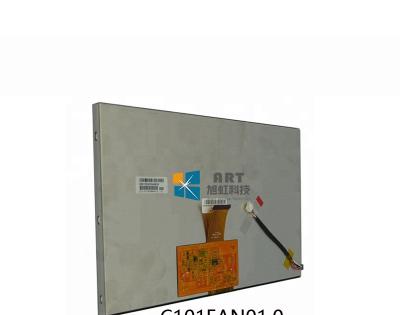

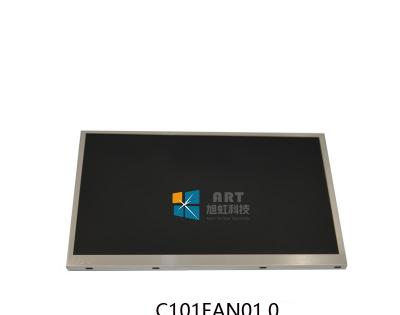

AUO C101EAN01.0 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | C101EAN01.0 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 10.1” | Designed For | Automotive Display,Outdoor High Brightness |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s²) |
| Features : | Srgb,Wide Temperature,3G Vibration, Hight Brightness，WLED Backlight,Matte，U/D,L/R Reverse |
AUO C101EAN01.0 Optical Details
| Basic Information : | Luminance | 700 cd/m²(Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 20/20 (Typ.)(Tr+Td) (ms) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.305; Wy:0.330 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6914K | White Variation | 1.25 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 71% | sRGB | 98% coverage |
| Adobe RGB | 74% coverage | DCI-P3 | 74% coverage |
| Rec.2020 | 53% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |
AUO C101EAN01.0 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*720 [WXGA] | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.05825*0.17475 mm | Pixel Pitch(mm) | 0.17475*0.17475 mm [145PPI] |
| Physical Size : | Active Viewing(mm) | 223.68(W)*125.82(H) mm | Bezel Area (mm) | 226.78(W)*132.22(H) mm |
| Outline Dim.(mm) | 238.6(W)*148(H) mm | Depth(mm) | 7.5/10.3 (Typ./Max.) mm |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 16:9(H:V) | Orientation | Landscape type |
| Other Spec : | Weight | 370±37g | Treatment | Antiglare |
AUO C101EAN01.0 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
AUO C101EAN01.0 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3/3.3V (Typ.)(VDD/VDDA) | Current Supply | 30/380mA (Typ.)(IDD/IDDA) |
| Signal Voltage |
- | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand
| Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5mm | 40 pins | 1 pcs | |
AUO C101EAN01.0 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S3P | Position | Edge light type |
| Exchange |
- | Lamp Shape | 3strings | Lamp Life | 10K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 24.0/27.2V (Typ./Max.) | Input Current | 80/85mA (Typ./Max.) |
| Interface Features : | Position | - | Physical Type |
Connector |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| JST | GHR-05V-S | 1.25mm | 5pins | 1 pcs |
BLE-5PINS-ANCCC |
| Backlight Driver : | No |
AUO C101EAN01.0 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 18 pcs / box | 9.25±0.250 Kgs | - |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for C101EAN01.0. Please include your application and required quantity so we can confirm the applicable revision.
Request C101EAN01.0 Datasheet
