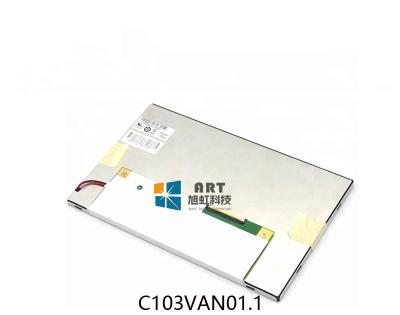

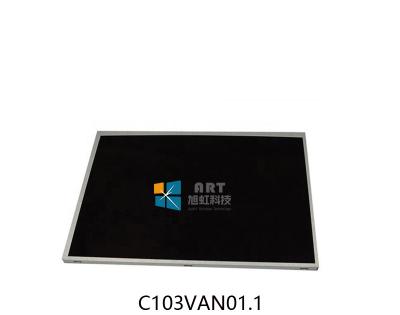

AUO C103VAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | C103VAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 10.3” | Designed For | Automotive Display |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s²) |
| Features : | Srgb,Wide Temperature,3G Vibration, Hight Brightness，WLED Backlight,Matte，U/D,L/R Reverse，Bar Display |
AUO C103VAN01.1 Optical Details
| Basic Information : | Luminance | 600 cd/m² (Min.) | Contrast Ratio | 800 : 1 (Min.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 40 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.318; Wy:0.321 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 6275K | White Variation | 1.25 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 80% | sRGB | 98% coverage |
| Adobe RGB | 79% coverage | DCI-P3 | 83% coverage |
| Rec.2020 | 60% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO C103VAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1280(RGB)*;480, DVGA | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0635*0.1905 (H*V) | Pixel Pitch(mm) | 0.1905*0.1905 (H*V) [133PPI] |
| Physical Size : | Active Viewing(mm) | 243.84(H) *91.44(V) | Bezel Area (mm) | 245.9(H) *95.2(V) |
| Outline Dim.(mm) | 260.35(H) * 113.73(V) | Depth(mm) | 8.73/16.73 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3(H:V) | Orientation | Landscape type |
| Other Spec : | Weight | TBD | Treatment | Antiglare, Hard coating (3H) |
AUO C103VAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (U/D, L/R) |
AUO C103VAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3/3.3V (Typ.)(VDD/VDDA) | Current Supply | 500mA (Max.) |
| Signal Voltage |
- | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand
| Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | FH28-40S-0.5SH | 0.5mm | 40 pins | 1 pcs | |
AUO C103VAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 8S3P | Position | Edge light type |
| Exchange |
- | Lamp Shape | 3strings | Lamp Life | 10K(Min.) (Hours) |
| Lamp Electrical : | Input Voltag | 27/30.6V (Typ./Max.) | Input Current | 80/85mA (Typ./Max.) |
| Interface Features : | Position | - | Physical Type | FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 1.0mm | 8pins | 1 pcs |
BLE-8PINS-AANNCCC |
| Backlight Driver : | No |
AUO C103VAN01.1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 15 pcs / box | 12 Kgs | 600*353*210 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for C103VAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
Request C103VAN01.1 Datasheet
