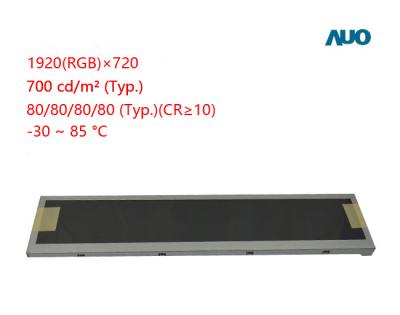

AUO C123HAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | C123HAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 12.3” | Designed For | Automotive Display |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s²) |
| Features : | Wide Temperature,3G Vibration, Hight Brightness，WLED Backlight,Matte， Bar Display |
AUO C123HAN01.1 Optical Details
| Basic Information : | Luminance | 700 cd/m²(Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 40 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | Wx:0.285; Wy:0.309 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 8696K | White Variation | 1.25 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 70% | sRGB | 94% coverage |
| Adobe RGB | 73% coverage | DCI-P3 | 93% coverage |
| Rec.2020 | 52% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
| Dispaly Performance : | Outdoor Visibility | Sunlight Readable | Transmissivity | - |

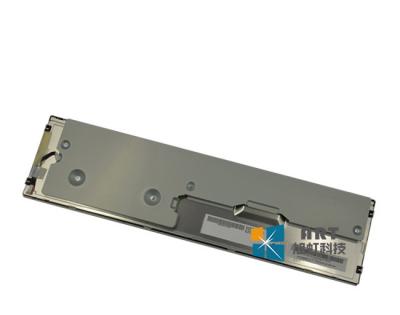

AUO C123HAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1920(RGB)*720 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W×H) | 0.05075*0.15225 (H*V) | Pixel Pitch(mm) | 0.15225*0.15225 (H*V) [166PPI] |
| Physical Size : | Active Viewing(mm) | 292.32(H) * 109.62(V) | Bezel Area (mm) | 294.82(H) *112.12(V) |
| Outline Dim.(mm) | 308.1(H) *134.86(V) | Depth(mm) | 7.6/15.6 (Typ./Max.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3(H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting Pole |
| Other Spec : | Weight | 590±59g | Treatment | Antiglare |
AUO C123HAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | No |
AUO C123HAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply |
3.3V (Typ.) | Current Supply |
750mA (Max.) |
| Signal Voltage |
- | Signal Interface | LVDS (2 ch, 8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand
| Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | FH41-40S-0.5SH(05) | 0.5mm | 40 pins | 1 pcs | |
AUO C123HAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | 10S2P | Position | Edge light type |
| Exchange |
- | Lamp Shape | 2strings | Lamp Life | 10K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage |
30/34V (Typ./Max.) | Input Current | 80/85mA (Typ./Max.) |
| Interface Features : | Position | - | Physical Type |
FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 1.0mm | 8pins | 1 pcs |
|
| Backlight Driver : | No |
AUO C123HAN01.1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 21 pcs / box | 15 Kgs | 650*410*260 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for C123HAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
