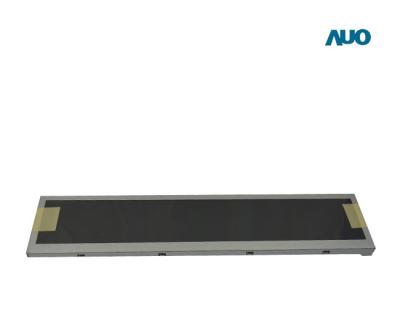

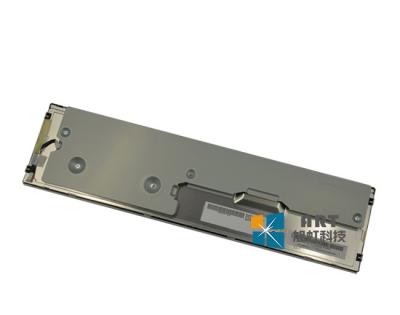

AUO C123VAN01.1 Application Details
| Basic Detail : | Manufacturer | AUO | Model Name | C123VAN01.1 |
| Panel Type | a-Si TFT-LCD , LCM | Another Name | |
| Panel Size | 12.3” | Designed For | Automotive Display |
| Maximum Ratings : | OP Temperature | -30 ~ 85 °C | ST Temperature | -40 ~ 95 °C |
| RoHS | RoHS | Vibration Level | 2.9G (28.4 m/s² ) |
| Features : | sRGB,Wide Temperature,3G Vibration, Hight Brightness，WLED Backlight,Matte， Bar Display，180°;Reverse |
AUO C123VAN01.1 Optical Details
| Basic Information : | Luminance | 700 cd/m² (Typ.) | Contrast Ratio | 1000 : 1 (Typ.) (Transmissive) |
| Good View at | Symmetry | Response Speed | 30 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) | Operating Mode | AHVA, Normally Black, Transmissive |
| Color Performance : | Chromaticity | X:0.302; Y:0.334 | Display Colors | 16.7M (8-bit) |
| Color Temperature | 7036K | White Variation | 1.25 (Max.)(9 points) |
| 1931 Color Gamlt : | NTSC Ratio | 72% | sRGB | 99% coverage |
| Adobe RGB | 75% coverage | DCI-P3 | 75% coverage |
| Rec.2020 | 54% coverage | Remarks | sRGB (Rec.709, BT.709), Rec.2020 (BT.2020) |
AUO C123VAN01.1 Mechanical Details
| Pixel Features : | Number of Pixel | 1440(RGB)*540 | Arrangement | RGB Vertical Stripe |
| Dot Pitch(W*H) | 0.0675*0.2025 (H*V) | Pixel Pitch(mm) | 0.2025*0.2025 (H*V) [125PPI] |
| Physical Size : | Active Viewing(mm) | 291.6(H) *109.35(V) | Bezel Area (mm) | 295.6(H) *112.35(V) |
| Outline Dim.(mm) | 308.5(H) *129(V) | Depth(mm) | 11.53 (Typ.) |
| Outline Features : | Form Style | Flat Rectangle | Outline Shape | |
| Aspect Ratio | 8:3(H:V) | Orientation | Landscape type |
| Mounting : | Rear mounting holes (6-M3) on pole |
| Other Spec : | Weight | TBD | Treatment | Antiglare, Hard coating (3H) |
AUO C123VAN01.1 Electronics Details
| Refresh Rate : | 60Hz |
| Reverse Scan : | Yes (180°) |
AUO C123VAN01.1 Interface Detail
| Signal Electrical : | Voltage Supply | 3.3V (Typ.) | Current Supply | 650/850mA (Typ./Max.) |
| Signal Voltage |
- | Signal Interface | LVDS (1 ch, 8-bit) |
| Interface Features : | Position | - | Physical Type | Connector |
| Interface Detail : | Brand
| Model | Pin Pitch | Pins | Amount | Pin Assignment |
| HRS | FH28-40S-0.5SH | 0.5mm | 40 pins | 1 pcs | |
AUO C123VAN01.1 Backlight Details
| Lamp Features : | Lamp Type | WLED | Quantity | | Position | Edge light type |
| Exchange |
- | Lamp Shape | 4strings | Lamp Life | 20K(Min.) (Hours) |
| Lamp Electrical : | Input Voltage | 27/30.6V (Typ./Max.) | Input Current | 80/85mA (Typ./Max.) |
| Interface Features : | Position | - | Physical Type |
FPC |
| Interface Detail : | Brand | Model | Pin Pitch | Pins | Amount | Pin Assignment |
| | | 0.5mm | 10pins | 1 pcs |
|
| Backlight Driver : | No |
AUO C123VAN01.1 Carton Details
| Package Carton : | Amount | Net Weight | Carton Size (L*W*H) |
| 21 pcs / box | 15 Kgs | 546*406*278 mm |
-
Datasheet and Drawing Request
Contact us to request the current datasheet and mechanical drawing for C123VAN01.1. Please include your application and required quantity so we can confirm the applicable revision.
